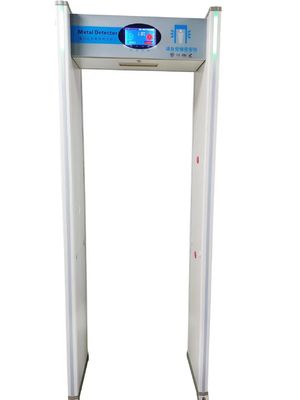

6-zone Metal Detection Gate

Production Introduction

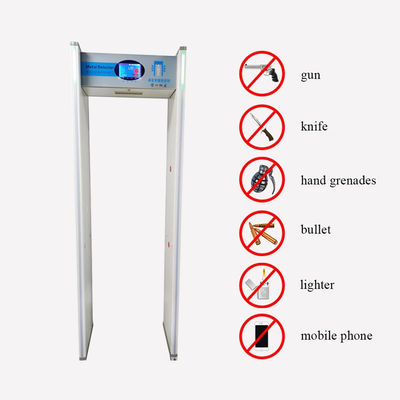

The 6-zone metal detection gate is a high-precision metal detection device, mainly used for security checks in public places such as airports, courts, schools, and factories. It uses a 6-zone alarm system to accurately locate the human body area where metal objects are located (such as the head, waist, and feet). Some models support 360-degree four-side doorpost lights to display the location of prohibited items. The operating frequency can be automatically adjusted to adapt to different environmental interference. Some high-end models integrate AI algorithms to distinguish between everyday items (keys) and prohibited items (knives, electronic devices), and support mobile phone power-off detection.

Features

• Multi-zone technology: 6 detection zones, the sensitivity of each detection zone can be adjusted arbitrarily (with adaptive adjustment technology), and there are high-brightness LED alarm position indicators to accurately locate the hidden location of prohibited items;
• Large screen technology: 7-inch LCD screen, mechanic operation buttons;
• Super strong shell protection technology: IP53 superior protection performance
• Anti-electromagnetic interference: Using DSP digital signal processing technology, it automatically scans and detects mechanical and electromagnetic interference in the installation environment, automatically adapts to the working environment, and has high immunity to electromagnetic and mechanical interference; no periodic calibration is required, greatly improving the anti-interference ability;
• Working frequency band: up to 100 working frequency bands, multiple devices can work side by side at a distance of 10cm without interfering with each other;
• Sensitivity calibration: Zone sensitivity calibration display, when the calibration zone detection sensitivity, the current adjustment zone indicator lights up to remind the operator of the current adjustment zone
• Flying object detection function: Block two sets of infrared at the same time to switch to flying mode
• Screen menu display: intuitive display of parameter information
• Power-on adaptive diagnosis: When the system is powered on, the system will perform adaptive diagnosis to detect power and faults;
• Detection area: divided into 6 detection areas based on the basic structure of the human body, so that the sensitivity distribution of the detection area is not only free of blind spots but also more uniform;
• Detection zone sensitivity: The sensitivity of a single zone can reach up to 0-99 levels. Built-in high and low sensitivity programs are convenient and quick to adjust, and all detection program parameters can be set and modified at any time;
• Alarm function: alarm light, alarm sound, arbitrary adjustment settings;
• Password operation: Password protection only allows authorized personnel to operate, which is more secure.
• Human safety: harmless to pacemaker wearers, pregnant women, magnetic media, etc.
• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Modularization design, easy for maintenance and replacement.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection,4-8 hours backup battery (Optional).
• Using high density fireproof material,Program Self-diagnostic when power on, no need initial or periodic calibration

Technical Parameters:

1. Overall Sensitivity: 255 levels (adjustable)

2. Regional Sensitivity: 400 levels (adjustable)

3. Power Consumption: <30 W

4. Sensitivity Levels: High, Medium, Low

5. Channel Dimensions: 2000 x 710 mm

6. External Dimensions: 2200 (H) x 850 (W) x 500 (D) mm

7. Operating Frequency: 1-16 bands

8. Operating Voltage: AC 220V, 50-60 Hz

9. Operating Temperature: -20°C to +45°C

10. Pass Rate: 60 people/minute
