三脚ターン スタイル ゲート
Created with Pixso. 304 Stainless Steel Revolving Pedestrian Turnstile Gate 3 Arm Multi - Alarm

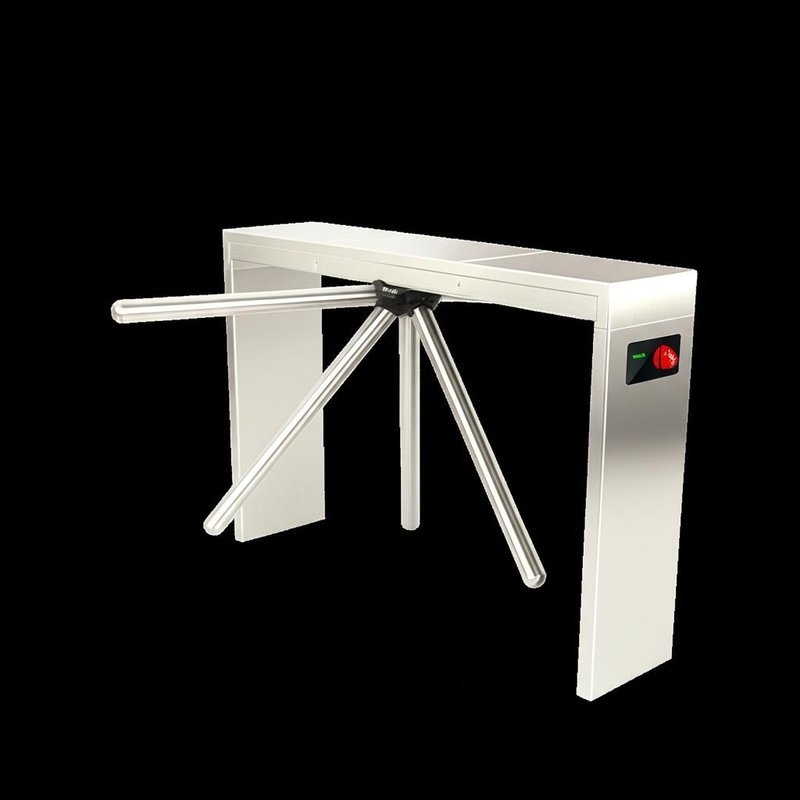

304 Stainless Steel Revolving Pedestrian Turnstile Gate 3 Arm Multi - Alarm

ブランド名: RONA
モデル番号: RNCFH 138
Moq: 1ユニット
価格: negotiable
配達時間: 7-15勤務日
支払条件: L/C、T/T
詳細情報
起源の場所:
中国
証明:
CE/ISO9001
材料:
304ステンレス鋼
モータータイプ:
ソレノイドの価値
サイズ:
1600mm*280mm*H990mm
mtbf:
10百万回
パス速度:
25~30人/9人
通過幅:
550mm
保証:
一年
パッケージの詳細:
カートンと木製の包装
供給の能力:
1ヶ月あたりの2000年の単位
ハイライト:

304 stainless steel turnstile gate

,

3 arm pedestrian turnstile

,

alarm tripod turnstile gate

製品説明

304 Stainless Steel Revolving Pedestrian Turnstile Gate 3 Arm Multi - Alarm

Ticket Tripod Gates are access control devices commonly used in public places such as tourist attractions, sports stadiums, museums, subway stations, and airports. By combining advanced electronic technology with mechanical equipment, they automate ticket validation and access control, making them an important tool for modern venue and scenic area management.



Functions
1.Ticket verification and express entry:

  • Ticket scanning and identification: Through the built-in code scanner or card reader, the ticket gate can quickly scan the QR code and barcode on the ticket or read the IC/ID card information to achieve rapid ticket verification.
  • Verification accuracy: Use advanced technical means to verify tickets, effectively prevent ticket forgery and counterfeiting, and ensure the legitimacy of visitors entering the park.
  • Quick entry: Once the ticket verification is passed, the tripod gate will automatically open, allowing visitors to pass quickly and reducing waiting time in line.

2.Customer flow monitoring and management

  • Real-time monitoring: The ticket gate can monitor the flow of people in real time, helping managers to grasp the passenger flow situation in the scenic spot in a timely manner.
  • Data analysis: By collecting information about passing people, such as passing time, frequency, etc., it provides data support for passenger flow prediction, resource allocation and operation management of scenic spots.

3.Security control

  • Identity verification: Combined with biometric technologies such as facial recognition and fingerprint recognition, ticket gates can further improve security and ensure that only legitimate tourists can enter the scenic spot.
  • Anti-tailgating function: Some advanced ticket gates also have an anti-tailgating function to prevent unverified people from following verified people.

4.Flexible configuration and adaptability

  • Multiple identification methods: Ticket turnstiles usually support multiple identification methods, such as QR code/barcode identification, fingerprint identification, IC/ID card identification, ID card identification, face recognition, etc. Scenic spots can be flexibly configured according to their own management needs.

5.Intelligent management and services

  • Connecting with the ticketing system: The ticket gate can be seamlessly connected with the ticketing system of the scenic spot to achieve real-time data synchronization and improve management efficiency.



Parameters

Item Full-auto Semi-auto
Size: 1600mm*280mm*H990mm
Bar length : 510(mm)
Bar Driving model : Digital
Rolling direction : Bi-direction,unidirectional(optional)
Lamp indication : Passing way indication Passing way indication
Mechanism core : Magnetic valve
Extensive function : Counter ,LED digital display
Work condition : Indoor/outdoor
Temperature: -20℃~70℃
Anti-panic : Drop when power off, raise automatically when power on Drop when power off, raise manually when power on
Card-reading window : Standard installation holder or customized
Opening time : 0.2s 0.2s
Passing speed : 30persons /min 25 persons /min
Working power: 80W 50W
Working voltage: AC220±10%V 50±10%HZ AC220±10%V 50±10%HZ
Input interface : Relay, dry contact signal or 12V pulse signal, pulse width>100ms,drive current>10mA
Communication port : RS485 ,connected with computer, remote control



Packaging
